Swage-locked grating, also called aluminum grating, is made of aluminum plates and cross bars. It is manufactured by inserting cross bars into pre-punched holes in the bearing bar. The cross bars are then swaged forming a positive mechanical connection.

Compared with other steel bar grating, it is lighter in weight without compromising to the load capacity and mechanical strength.

It can be supplied in different bearing bar types and surface types for your different applications and requirements.

Available Materials

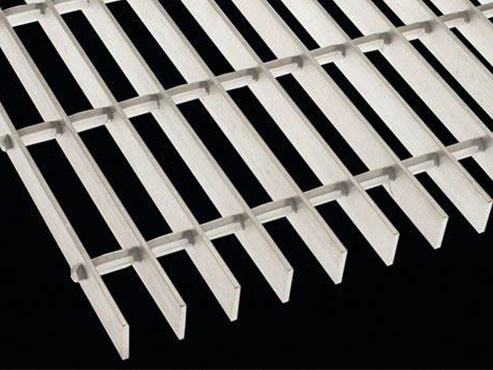

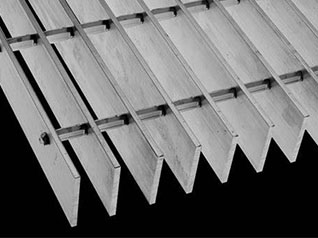

Flat bar

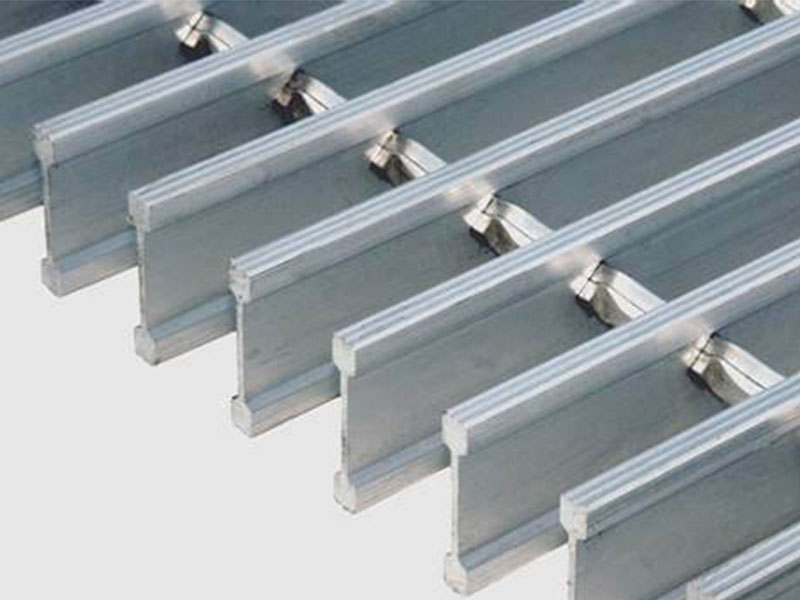

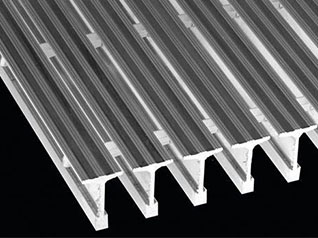

I bar

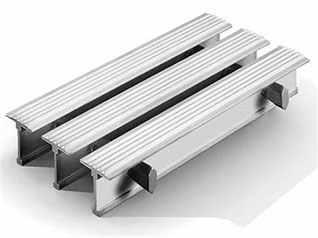

T bar

Surface Type

Smooth surface

Serrated surface

Specifications

Material: aluminum.
Finish: mill finish, clear anodized, powder coated.
Bearing bar type: rectangular, I type and T type.
Cross bar type: square twisted bars or round bars.

Popular Specifications of Swage-Locked Grating
Bearing Bar (mm)	Cross Bar (mm)	Center Pitch (mm)
Flat Rectangular Bars
25 × 2	8 × 8	30 × 100, 40 × 100, 60 × 100
25 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
25.4 × 4.76	8 × 8	30 × 100, 40 × 100, 60 × 100
30 × 5	8 × 8	30 × 100, 40 × 100, 60 × 100
31.75 × 4.76	8 × 8	30 × 100, 40 × 100, 60 × 100
32 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
35 × 5	8 × 8	30 × 100, 40 × 100, 60 × 100
38 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
38 × 5	8 × 8	30 × 100, 40 × 100, 60 × 100
40 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
40 × 4	8 × 8	30 × 100, 40 × 100, 60 × 100
40 × 5	8 × 8	30 × 100, 40 × 100, 60 × 100
40 × 12	8 × 8	30 × 100, 40 × 100, 60 × 100
45 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
45 × 5	8 × 8	30 × 100, 40 × 100, 60 × 100
50 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
50 × 4.5	8 × 8	30 × 100, 40 × 100, 60 × 100
55 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
60 × 3	8 × 8	30 × 100, 40 × 100, 60 × 100
60 × 12	8 × 8	30 × 100, 40 × 100, 60 × 100
65 × 4.96	8 × 8	30 × 100, 40 × 100, 60 × 100
65 × 5	8 × 8	30 × 100, 40 × 100, 60 × 100
I Type Bearing Bars
26.8 × 6.25	8 × 8	30 × 100, 40 × 100, 60 × 100
25.4 × 6.35	8 × 8	30 × 100, 40 × 100, 60 × 100
65 × 6.35	8 × 8	30 × 100, 40 × 100, 60 × 100
50.8 × 6.35	8 × 8	30 × 100, 40 × 100, 60 × 100
T Type Bearing Bars
32 × 60	8 × 8	30 × 100, 40 × 100, 60 × 100
28 × 52	8 × 8	30 × 100, 40 × 100, 60 × 100

Advantages

Lightweight than other steel bar gratings.
Unique interlocked structure supplies high strength and durable structure.
High strength and load capacity.
Good anti-slipping performance for safety protection.
Self-cleaning and less maintenance save your labor costs.
Excellent corrosion and rust resistance performance for durability.
Quick and easy installation save labor costs and times for projects.

Applications

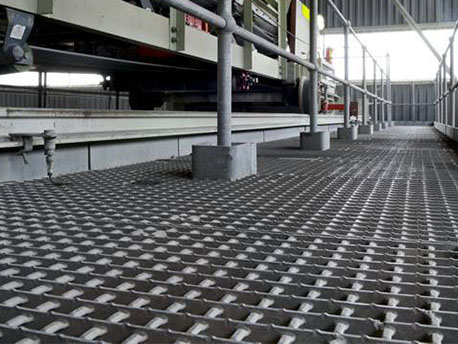

Industrial use. It is widely used in industrial applications for safety protection, such as:
Platform
Stair treads
Walkway

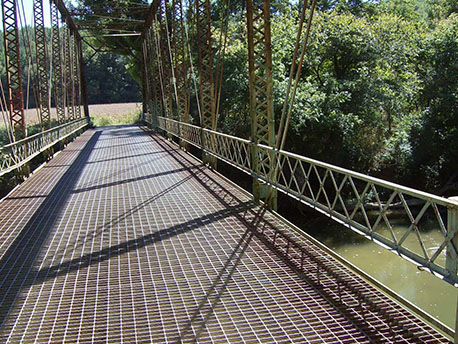

Bridge decking

Catwalk
Walkway
Floors
Platforms
Stair treads
Bridge decking

Commercial use. Swage locked grating can be used in building construction for decoration and functional use, such as:
Sunscreen

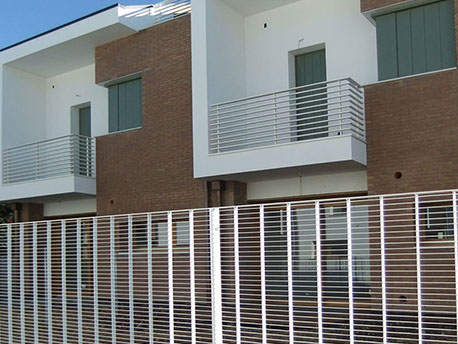

Fences

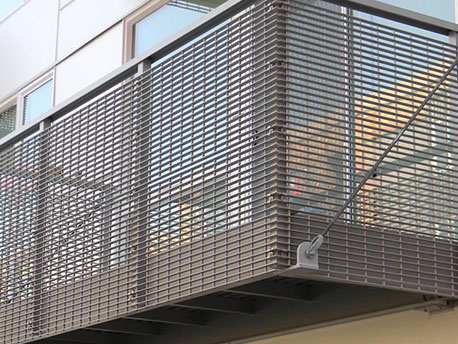

Building facade

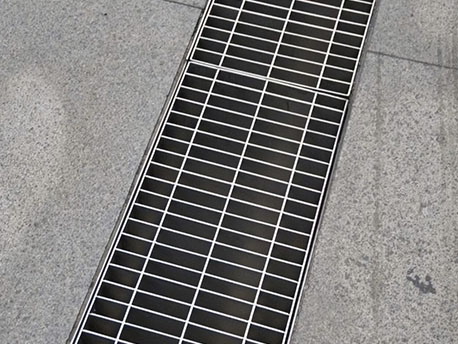

Trench cover

Building facade system
Ceilings
Fences
Sunscreens
Decoration grilles
Trench cover gratings
