Stainless Steel Grating_Yantai Qixing Metal Products Co., Ltd.

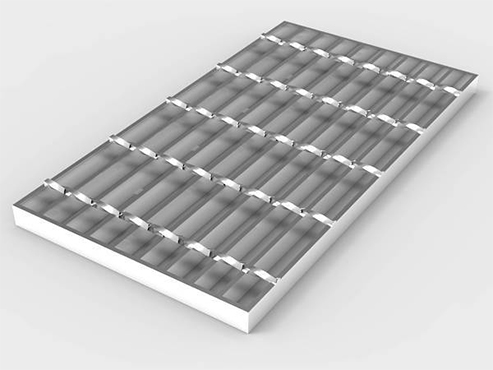

Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable and corrosive resistant for all load bearing applications and is primarily used for pedestrian and light vehicle traffic.

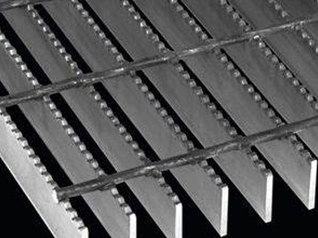

Both in Smooth or serrated surface.
304 or 316 grade for choice.
Wide range of bearing bar sizes and pitches.
Special discount for large orders.
Project reference can be supplied for your bid.
ISO Certificated factory.
CAD or 3D drawing can be supplied for your design and construction.

Grating Type

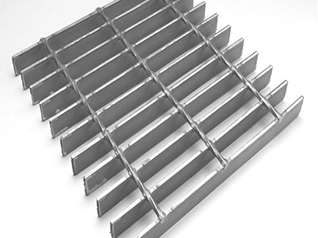

Welded Steel Grating

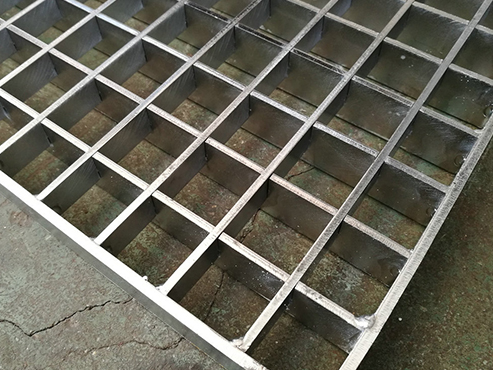

Press lock Steel Grating

Bearing Bar Type

Standard/Light Duty Grating

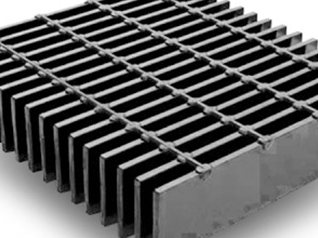

Heavy Duty Grating

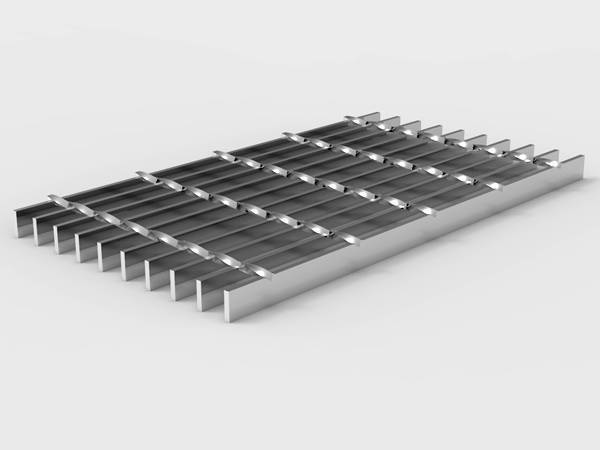

I Bar Grating

Dimensions

Material: stainless steel 304, 304L, 316, 316L.
Finish: mill finish, commercial clean and electro polished.
Bearing bar spacing: ranging from 1-3/16" to 11/16".
Cross bar spacing: 2" or 4" on center.

Type	Description	Tensile Strength	Yield
304	Good corrosion resistance, high tensile strength, excellent for chemical processing, food industries, power plants and waste water treatment. Used in high temperature applications	75,000 psi (min.)	30,000 psi (min.)
316	Better corrosion and pitting resistance than type 304, good heat resistance, used in chemical, pulp and paper processing, marine environments, textile equipment, petroleum refining.	75,000 psi (min.)	30,000 psi (min.)

Metric Legend	Imperial Legend
U = Safe Uniform Load (kPa) C = Safe Concentrated Load (kN/meter of grating width) D = Deflection (mm)	U = Safe Uniform Load (lbs./ft2) C = Safe Concentrated Load (lbs./foot of grating width) D = Deflection (inches)

Stainless Steel Grade	Load/Deflection	Multiply Carbon Steel Load Tables By:	Based on Maximum Allowable Fiber Stress
304Stainless Steel	U	1.111	20,000 P.S.I. (137.9 MPa)
	C	1.111
	D	1.151
304LStainless Steel	U	0.917	16,500 P.S.I. (113.8 MPa)
	C	0.917
	D	0.949
316Stainless Steel	U	1.111	20,000 P.S.I. (137.9 MPa)
	C	1.111
	D	1.151
316LStainless Steel	U	0.917	16,500 P.S.I. (113.8 MPa)
	C	0.917
	D	0.949

Resources

Spacing Table – Standard Steel Grating
Loading Tables
Order Information
Manufacturing tolerance
19-W-2 or 19-W-4 Available Sizes
15-W-2 or 15-W-4 Available Sizes
11-W-2 or 11-W-4 Available Sizes
Product Brochure

Advantages

Best corrosion and rust resistance for harshest conditions.
Can be used in offshore and oily environments as flooring or platform gratings
Serrated or non-serrated grating for different slip resistance applications.
Ranges of bearing loads for light to heavy duty applications as platform or walkway gratings.
Advanced equipment and efficient production for fast delivery.

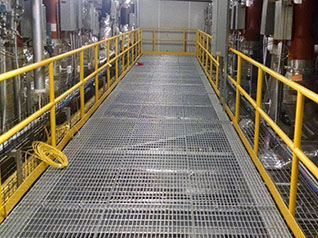

Applications

It can provide durable grating solution for corrosive resistance and minimum carbide precipitation are important considerations, typical applications include stairs and platforms for chemical production and storage, food processing and water and waste water treatment plant.
